FGG Push Pull Electrical Connectors With Black Metal 5.0mm Cable Collet Diameter

Name: FGG Push Pull Electrical Connectors With Black Metal 50mm Cable Collet Diameter
Brand: MOCO
Price: 5 USD

Wholesale FGG Push Pull Electrical Connectors With Black Metal 5.0mm Cable Collet Diameter from china suppliers

Brand Name : MOCO

Model Number : FGG.1B.302

Certification : UL CE ROHS ISO9001

Place of Origin : Guangdong, China

MOQ : 10 pcs

Price : USD: 5 - 10 ( Unit Type: pcs )

Payment Terms : T/T, Paypal, Western Union, Alibaba trade insurance

Supply Ability : 200000 pcs /month

Delivery Time : 4 - 7 working days after receiving payment

Packaging Details : Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)

Sample : Available

Factory : yes

Connector type : Solder

Size : 00 / 0B /1B 2B available

Pin : 2 to 30 pin availale

Housing material : Chrome plated brass

Type : Push pull connector

Contact Now

MOCO Connector B series 2 to 30 pin FGG black metal connector

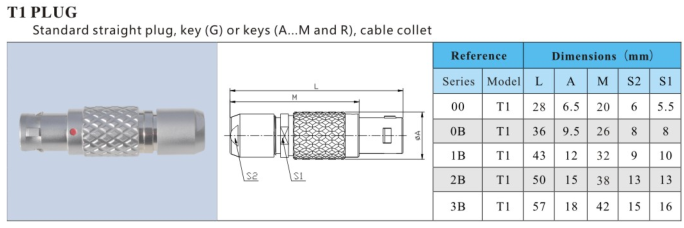

T1(FGG) male plug:

1. T1 is a standard straight plug,key(G) or keys (A...M and R), cable collet.

2. 00B: 2,3,4 pin available;

3.0,3.5 mm cable collet diameter available

3. 0B: 2,3,4,5,6,7,9 pin available;

3.5mm ,4.0mm ,5.0mm cable collet diameter available

4. 1B: 2,3,4,5,6,7,8,10,12,14,16 pin available;

3.0mm ,4.0mm ,5.0mm ,6.0mm ,7.0mm cable collet diameter available

5. 2B: 1(250),2,3,4,5,6,7,8,10,12,14,16,18,19,26 pin available

4.0mm ,5.0mm ,6.0mm ,7.0mm ,8.0mm ,9.0mm ,10.0mm cable collet diameter available

6. 3B:1,3,4,7,8,10,12,14,16,18,20,26,30 pin available

7. We have " black chrome plated brass" and " chrome plated brass" for connector.

MOCO P / N	1BT1G02(FGG.1B.302)
Insert Configuration:	2 pin low voltage
Size:	1B
Insulator:	PPS
R (max):	5 mohm
Max. Matings:	5000
Contact Dia:	1.3mm
Rated Current:	15A (AC/DC)
Temp (min)	-40 deg
Temp (max)	200 deg C
Humidity (max)	<=95% [at 60 deg C / 140 F]
Salt Spray Corrosion	>144 hr
IP Rating	50

FGG Push Pull Electrical Connectors With Black Metal 5.0mm Cable Collet Diameter

We also provide cable assembly service!

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
