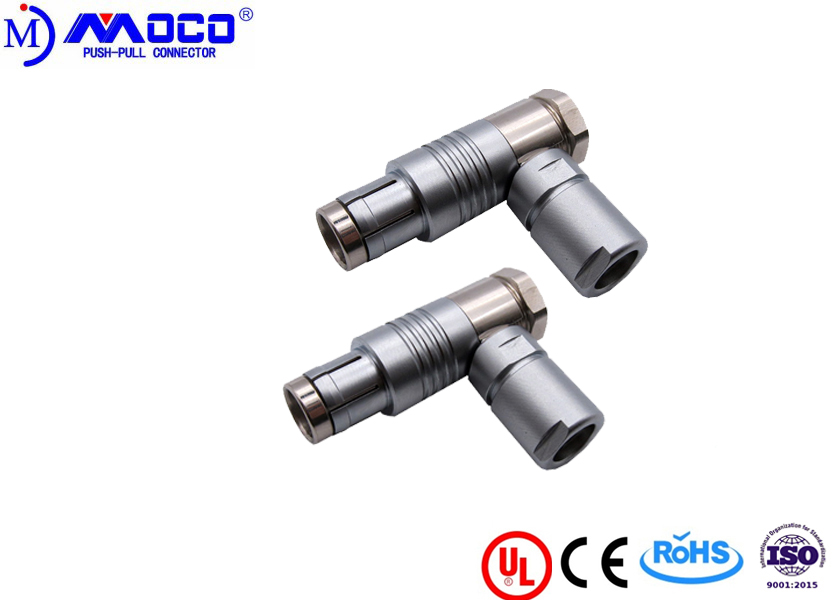

Right Angle IP66 Waterproof Circular Connectors 5 Pin push pull

  • 1
  • 2
  • 3

Brand Name : MOCO

Model Number : 1KT3G05CLA

Certification : UL/CE/RoHs/ISO9001

Place of Origin : Shenzhen, China

MOQ : 10pcs

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 200000pcs/month

Delivery Time : 7-10 work days after sample confirmation

Packaging Details : Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)

Product Name : WSO 103 series 5 pin right angle male waterproof circular connector

pin : 5 pin

insulator material : PPS

Vibration : 15 g [10 Hz - 2000 Hz]

Shock Resistance : 100 g [ 6 ms]

IP Rating : 68

Contact Now

Right Angle IP66 Waterproof Circular Connectors 5 Pin push pull

Main features:

- Security of the push-pull self-latching system;

- Solder or print contacts(straight or elbow);
- Multiple key options to avoid cross mating of similar connectors;
- Keying system for connector alignment;
- 360°screening for full EMC shielding;

- Watertight connection(IP66-IP68);
- Rugged housing for extreme working conditions.

K series connectors are designed for out door applications. All models of this series are watertight when mated to give a protection degree IP68 when correctly assembled to an appropriate cable(at least IP66)..

T3 is elbow (90°) waterproof plug with cable collect. 2-16 pins of 1K series are in stock.

Right Angle IP66 Waterproof Circular Connectors 5 Pin push pull

MOCO P / N 1KT3G05CLA
Insert 5 low voltage
Configuration Brass (gold plated)
Insulator PPS
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 68
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

We also provide cable assembly service!

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
